Title: Automatic sewing machines for heavy duty lifting slings
Update Time 2023-08-07 12:58 Views

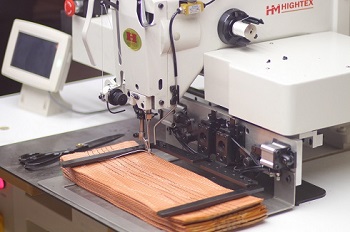

MLK600-3020 High speed automatic pattern sewing machine for medium to heavy-duty polyester lifting slings
High production efficiency due to its high sewing speed (Max.1600 RPM) provides high efficiency.
Large rotary hook with 3 times bobbin capacity helps reduce the frequency of bobbin thread changing.
Note: This programmable pattern sewing machine is only can stitch 9mm thick webbing slings (Nylon, Polyester ), with max. thick sewing thread metric size #10 (=T-270, V277, 840dx3).
Video for sewing lifting slings

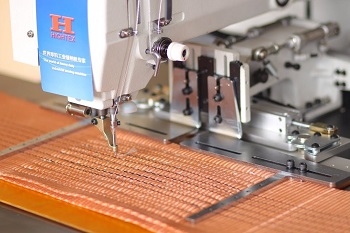

72600PLK High Speed heavy duty programmable pattern sewing machine
Upto 1000 rpm high sewing speed guarantees high efficiency. The extra large rotary hook and bobbin capacity (6 times bigger than normal) reduces the number of bobbin changes even for thick thread.
This automatic & programmable pattern sewing machine  can stitch 12mm thick webbing slings (Nylon, Polyester ), with max. thick sewing thread metric size #8, V346, T-350, 1100dx3.
Click here for video

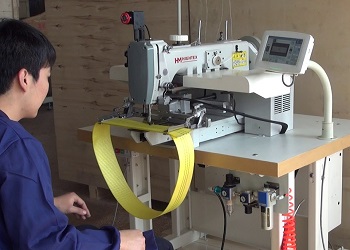

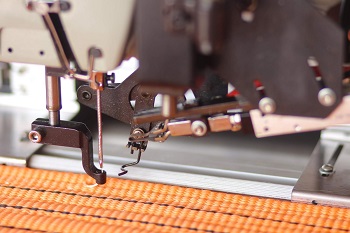

7273CNC Electronic lockstitch programmable pattern sewing machine for textile slings
With 300 × 200 mm of large sewing field; Equipped with an upper and lower burning type thread trimmer; Due to its robust design, quick change clamp is possible to increase efficiency and save labor cost; Can easily sew 2-4 ply synthetic webbing slings (3.5 mm of each) together, using very strong sewing thread Metric #7, V415, T-400, 1300dx3.
Click here for video

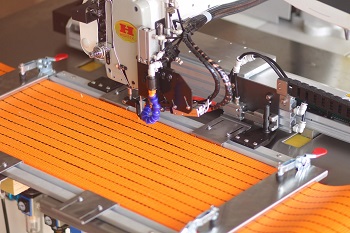

GLK700-5030 Large area programmable pattern sewing machine for 300 mm wide lifting slings
Large area programmable pattern sewing machine for automatic stitching 300mm wide heavy duty polyester webbing straps (for making 10T lifting sling, 10,000 KGS lifting sling), using very thick sewing thread Metric #7, V415, T-400, 1300dx3.
The custom made clamping systems is adjustable for sewing webbing slings with width of 300mm, 240mm, 180mm, 150mm and120mm. This heavy duty electronically controlled pattern sewing machine is designed for sewing 300mm wide extra heavy duty lifting slings and wide body cargo slings (for use in stabilizing and protecting loads over a wide surface area)
Click here for video



733PLC Heaviest programmable electric pattern sewing machine for extra heavy duty lifting slings
The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3.
Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself).
Click here for video

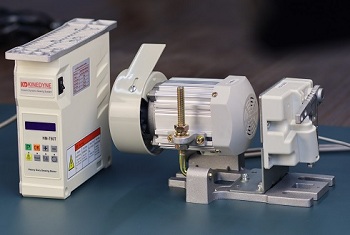

Kinedyne HM-750T Revolutionary new  powerful and reliable energy saving servo motor for heavy duty webbing slings sewing machines


The powerful, slient and durable servo motor comes with electronic board for pneumatic presser foot lift, pneumatic reverse, needle cooler and automatic needle position, your productivity may increase substantially (20-40%). This high performance energy saving servo motor can save 60-80% electricity. Usually the cost of servo motor can be recovered within 2-3 years by saving money on electricity. However the advantage of time savings and labor cost saving will make the actual return on investment faster.

Click here for Demo video
