Title: Heavy duty industrial sewing machine for Big bag/Jumbo bag
Update Time 2023-08-07 13:01 Views

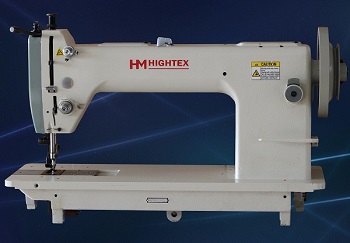

72600 High speed heavy duty lockstitch sewing machine with extra large rotary hook for stitching Big bag/Jumbo bag/container bags
Can stitch in any direction (360°) due to the FREE SEWING DESGIN, you can move the material freely and quickly, especially when perform reinforcement stitch for sewing and attaching lifting loops (container belts):
1. Making side seams on heavy weight fabrics with thick thread, and all other LOCKSTITCH seams on body of container bags;
2. Assembling layers of PP webbings together for making lifting loops (container belts) of Big Bag, with various reinforced seams, such as X-Box;
3. Sewing and attaching side seam loops or cross corner loops (container belts) by reinforced stitching;
4. Inserting top covers and attaching filler cord and discharging tubes with cords from the too and/or from below for sealing the left needle punctures;
5. 3-D spacer fabric construction: stitch layers of spacer fabrics together with thickness up to 18mm;
6. Use as FIBC bag repair machine for patch and mend jute sacks, Polypropylene (PP) Big Bags, Container Bags, tents and awnings.
Click here for video 1    Click here for video 2

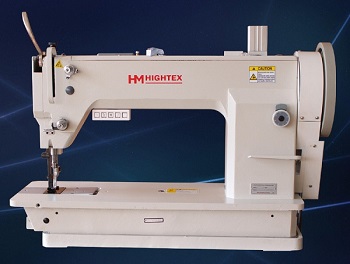

7367 Latest heavy duty lockstitch sewing machine for Jumbo Bags - Big Bag making industry
It is the latest sewing technology for the Jumbo Bags - Big Bag making industry, the new technologies of this machine are optimal conditions for manufacturing of container bags and Big Bags:
1. High sewing speed up to 1600 RPM;
2. Up to 14mm big stitch length;
3. With its strong top and bottom feed mechanism, the machine insures the smooth feeding of hard-to-feed materials or multilayered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches;
4. The presser foot has an extra high lift and can go up to 18mm, allowing for a large range of extra heavy weight material to be used;
5. The automatic lubricating mechanism dramatically improves maintainability of the machine;
6. Equipped with largest horizontal axis hook and extra large capacity bobbin (6 times);
7. Its features a "free sewing" capability that allows the operator to sew in any direction, allows effective jobs for belt attaching on a container bag, enforcement belt sewing, sling belt , large size parts sewing and so on.
