1. This sail sewing machine is assembled in Italy, and prepared with special settings for sail makers;

2. This zigzag sail making machine employs a parallel vertical needle bar motion for stronger striking power and a semi-automatic lubrication system which improves the service life;

3. The stitch length up to 5mm and zig-zag width of max. 10mm, all common operations on modern sails can be realized with the comfortable integrated controls in the head reach of the operator;

4. This arm is the only building with factory cast, for strength & stability (not a cut and piece extended arm). this means is a unique piece of cast iron without any welding line;

6. Extended Clearance Area: 25” long arm with 6.5” height, offering more space to handle bigger sails with ease;

7. Easy to change cam for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag, cover all demands of modern sail making industry OR in case you dont like the cams, there is the FM CAMBOX;

8. Using 750SH Kinedyne digital servo motors offer precise speed and torque control even at low speeds, essential for stitching thick sail corners;

9. Standard supplied with economic puller BELT16 or powerful FM BELT;

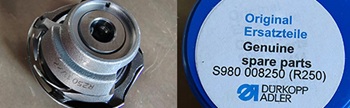

10. Using genuine DURKOPP # S980 008250 R250 Rotary Hook & Bobbin Case as standard hook OR the XXL hook +40% capacity.

Applications:
Spinnakers, windsurf sail, parasail, Code Zero, awnings, filters, parachutes, shoes, footwear, medical apparatus, canvas, tarpaulins, braided rugs, wet suits, textile slings, handbags, sports apparatus, blinds, nets, bandages, straps, Velcro, body supports etc.
Specification:

Max.sewing speed :1500/1800 stitch per minute

Hook Type:DURKOPP # S980 008250 R250 Rotary Hook

Needle system:134-35 size 90-130, R

Thread size:V46 to V138

Max sewing thickness:from spi to 8mm

Max stitch length:5mm

Zig-zag width:from 4.5 to 10mm

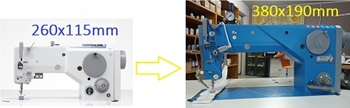

Sewing area:380x190MM
